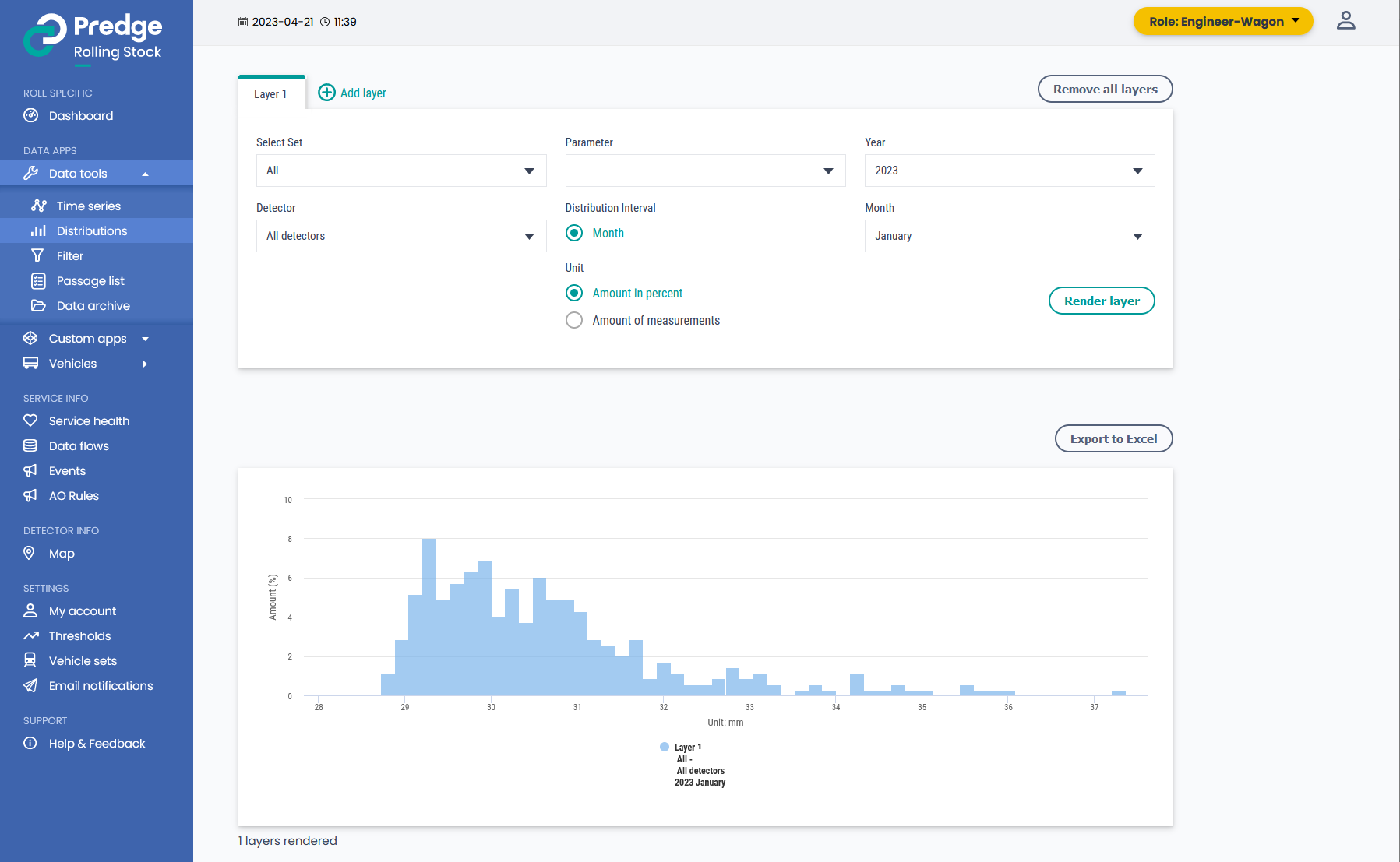

In Distributions, you can view detailed information on wagon groups or time intervals.
Here you can select preferred parameters of distributions to compare wagon groups or time intervals.
By using multiple layers you can view and compare various distributions.

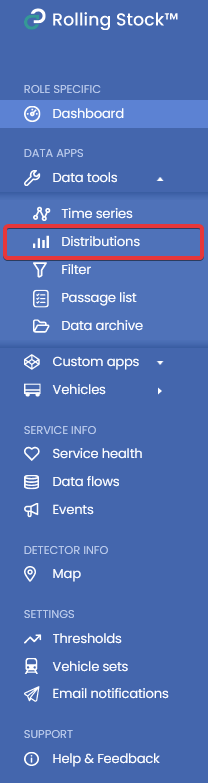

You find the application under Data Tools in the drop-down list.
Add layers to distributions

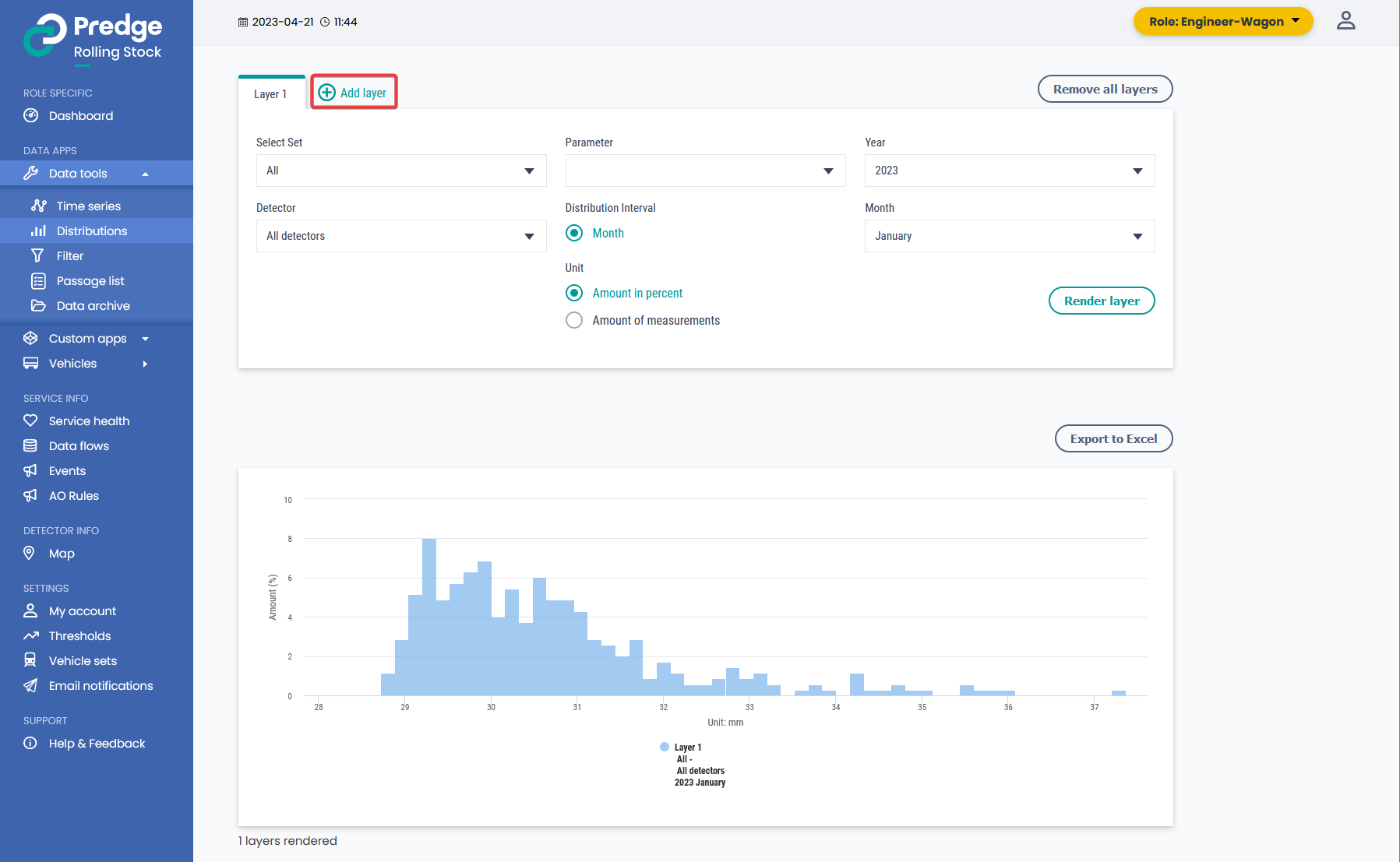

To add another layer click on ADD LAYER at the top of the page. Select the desired parameters & click on RENDER LAYER.
Remove layers in distributions.

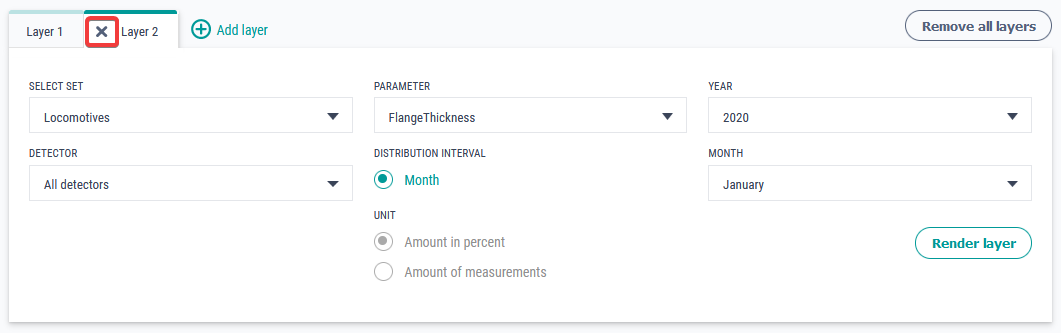

To remove a layer click on the X in the layer tab.
Clear layers in the distributions view

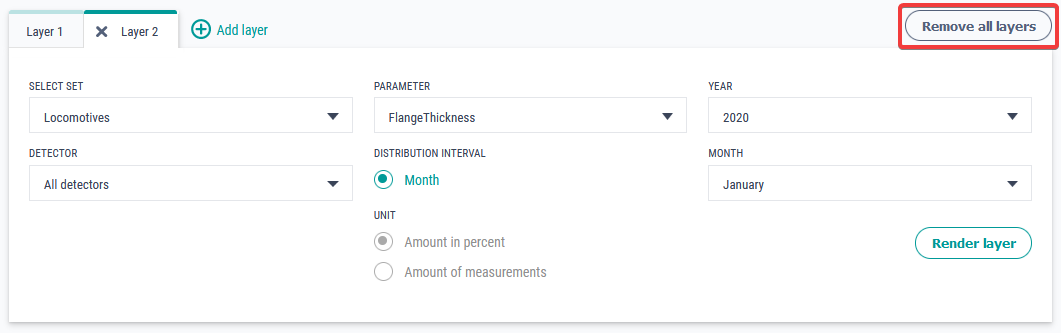

To clear layers in the view click on the REMOVE ALL LAYERS button in the upper right corner.
View distribution of a vehicle set
1. Select Vehicle set and Detector parameters in the upper left.

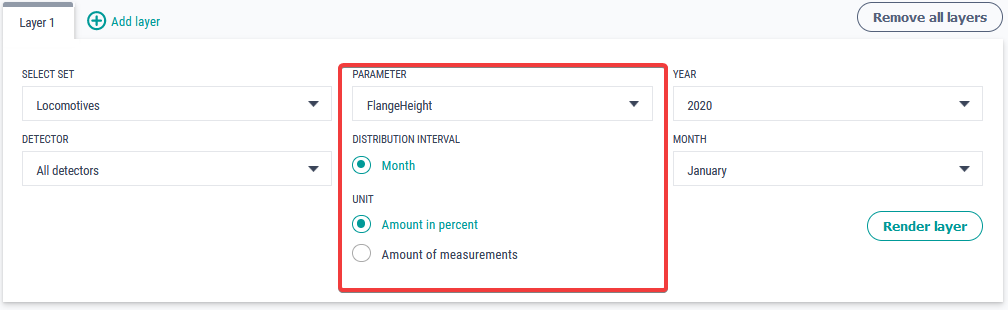

2. Select Parameters and Interval to view.
3. Select Dates and click on the RENDER LAYER button.

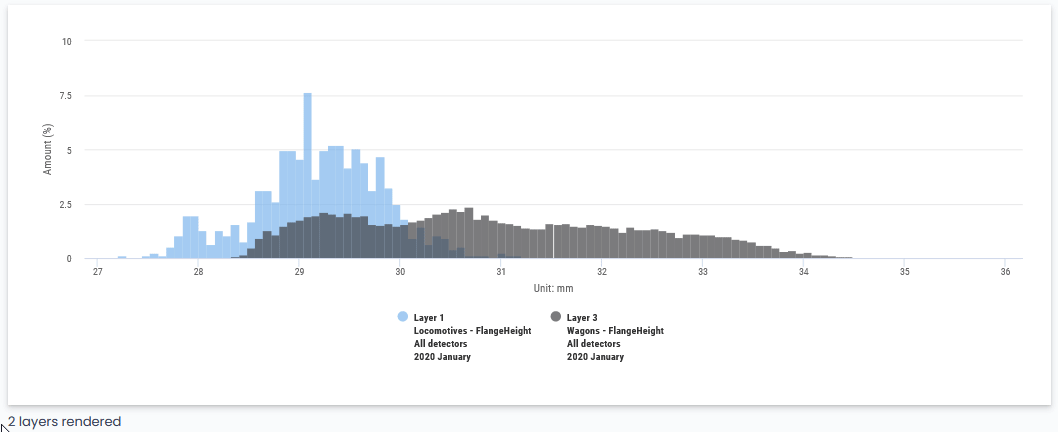

For a more detailed view, you can zoom in on the results of the chart by clicking & dragging with the mouse over the preferred selection.
You can also select to view individual layers by clicking on a layer to select or de-select.
To return to the original view click on Reset zoom.

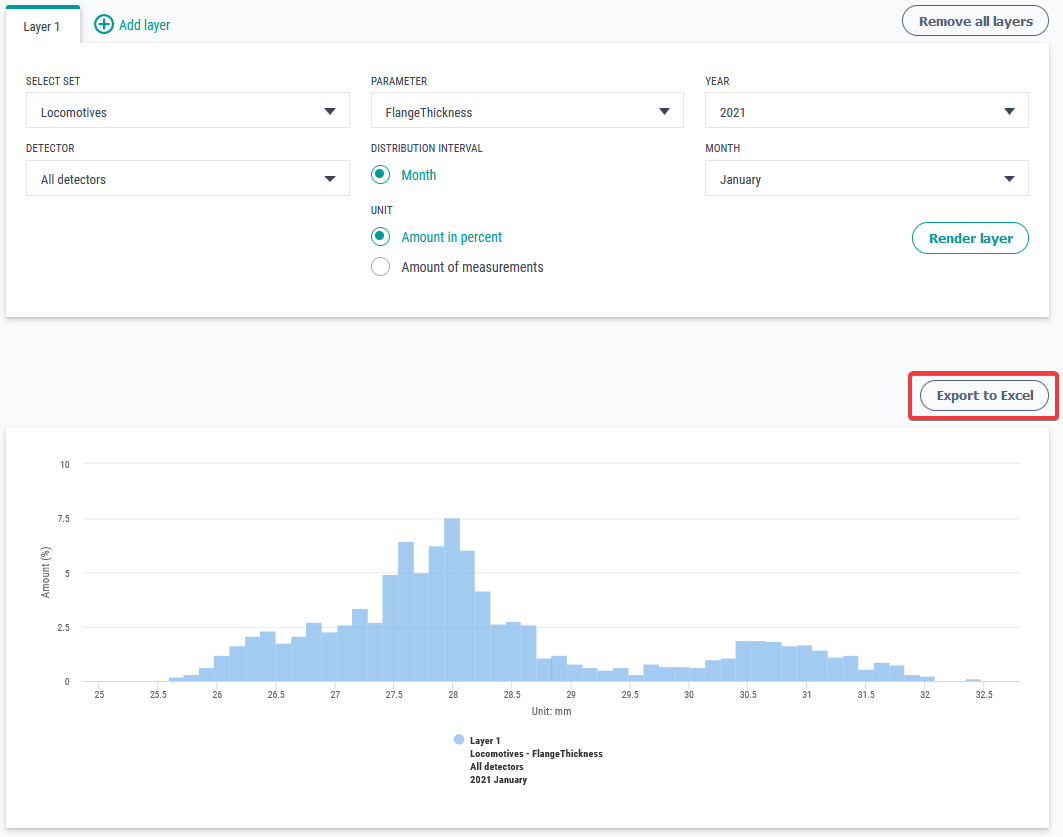

To export the results to Excel, click on the EXPORT TO EXCEL button in the upper right corner of the chart results.
