In Time series application, you can get a time series visualization of selected parameters of wheels for a chosen time period.
It is possible to view multiple time series on the same chart. By doing this you can:
- compare different wheels of a specific vehicle
- compare multiple vehicles
- compare multiple parameters on one wheel
The results can be zoomed in by using the mouse to click and drag or using the finger using a mobile device.

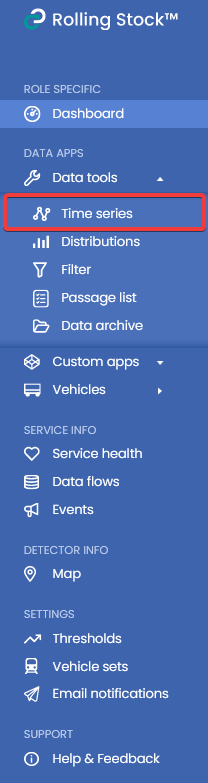

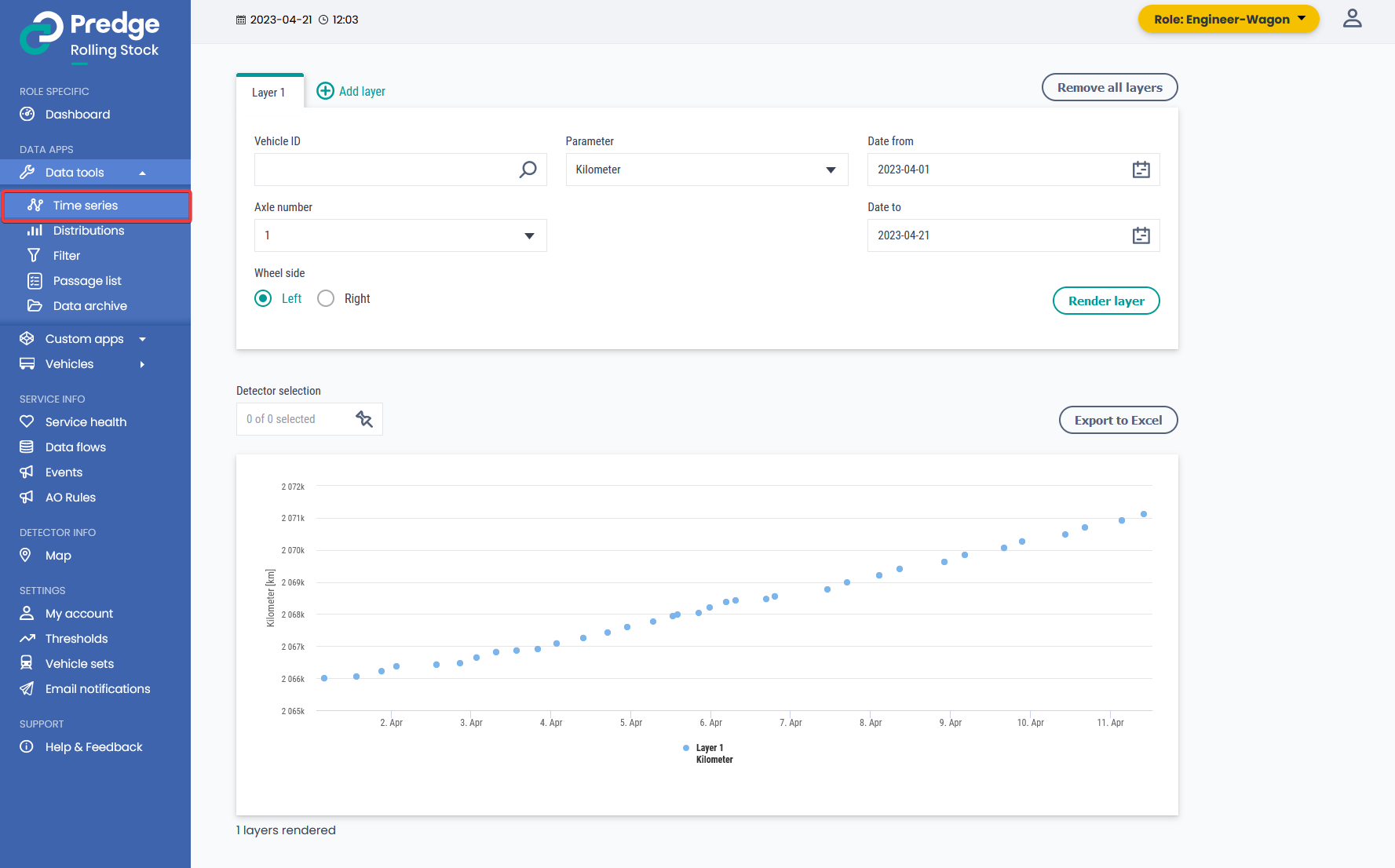

You find Time series under the data tools drop-down menu.
View time series for a vehicle

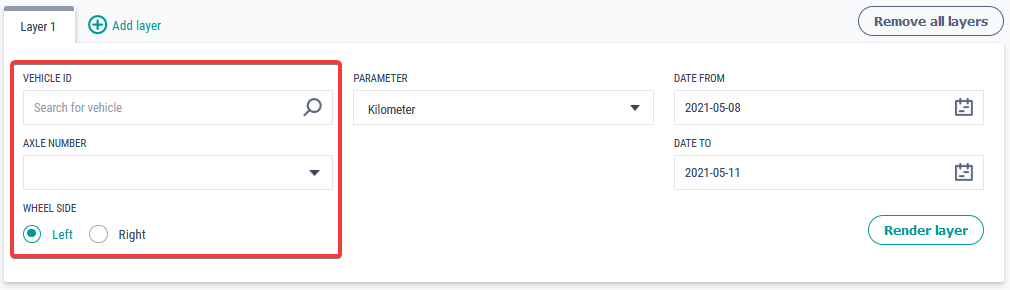

1. Enter VEHICLE ID and select AXLE NUMBER to view.

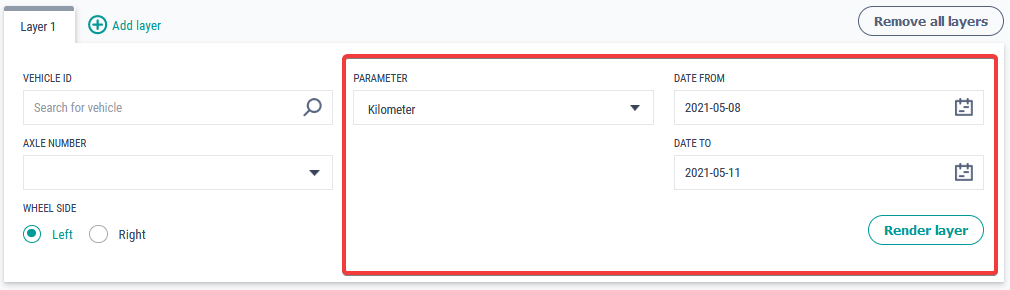

2. Select PARAMETER and Date span to view.
3. Click on the RENDER LAYER button.

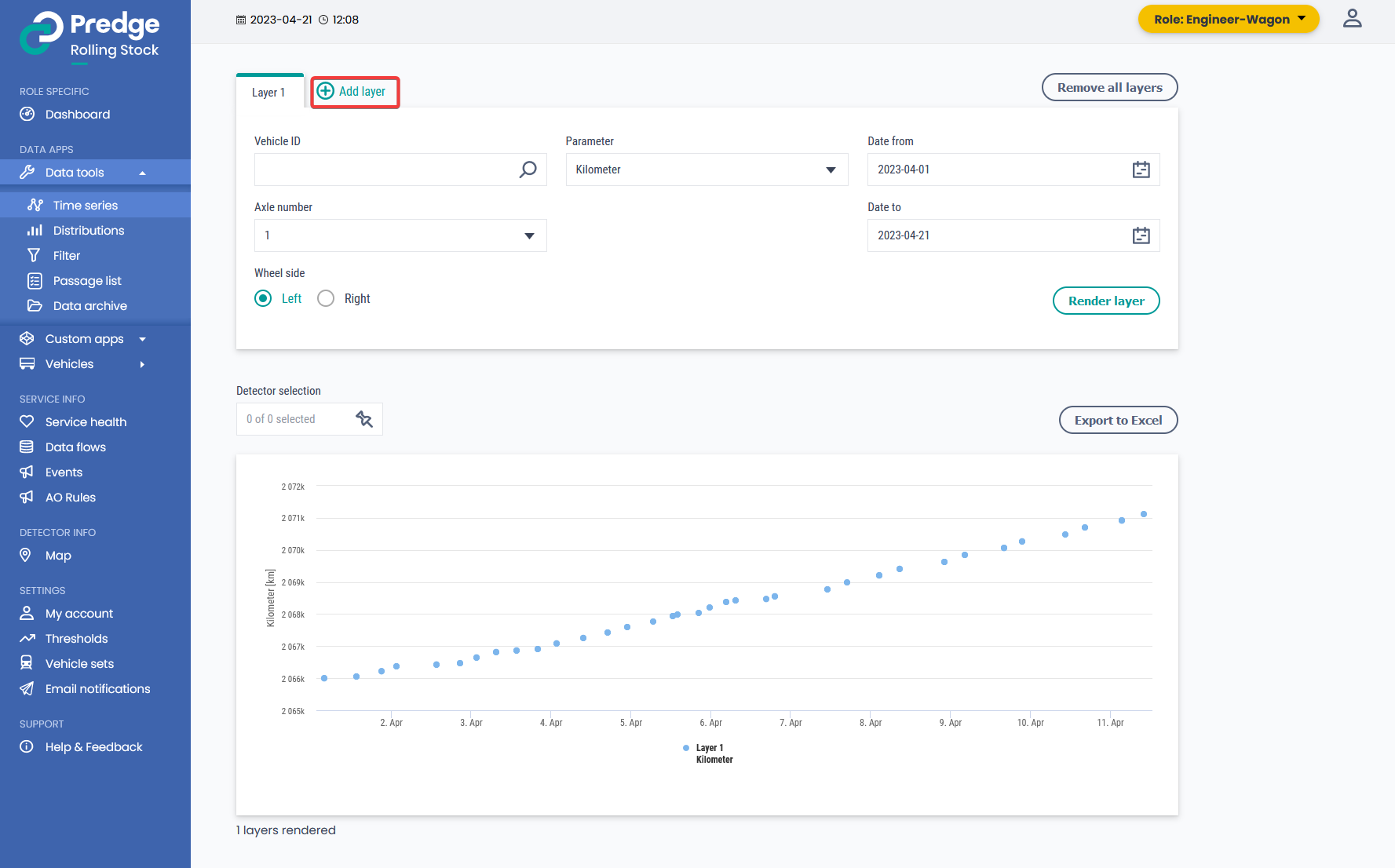

Adding layers in time series
To add another layer click on ADD LAYER at the top of the page. Select the desired parameters & click on RENDER LAYER.

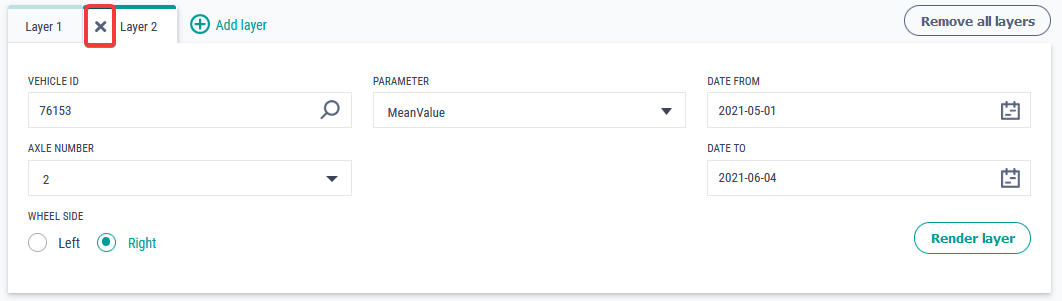

Remove layers
To remove a layer click on the X in the layer tab.

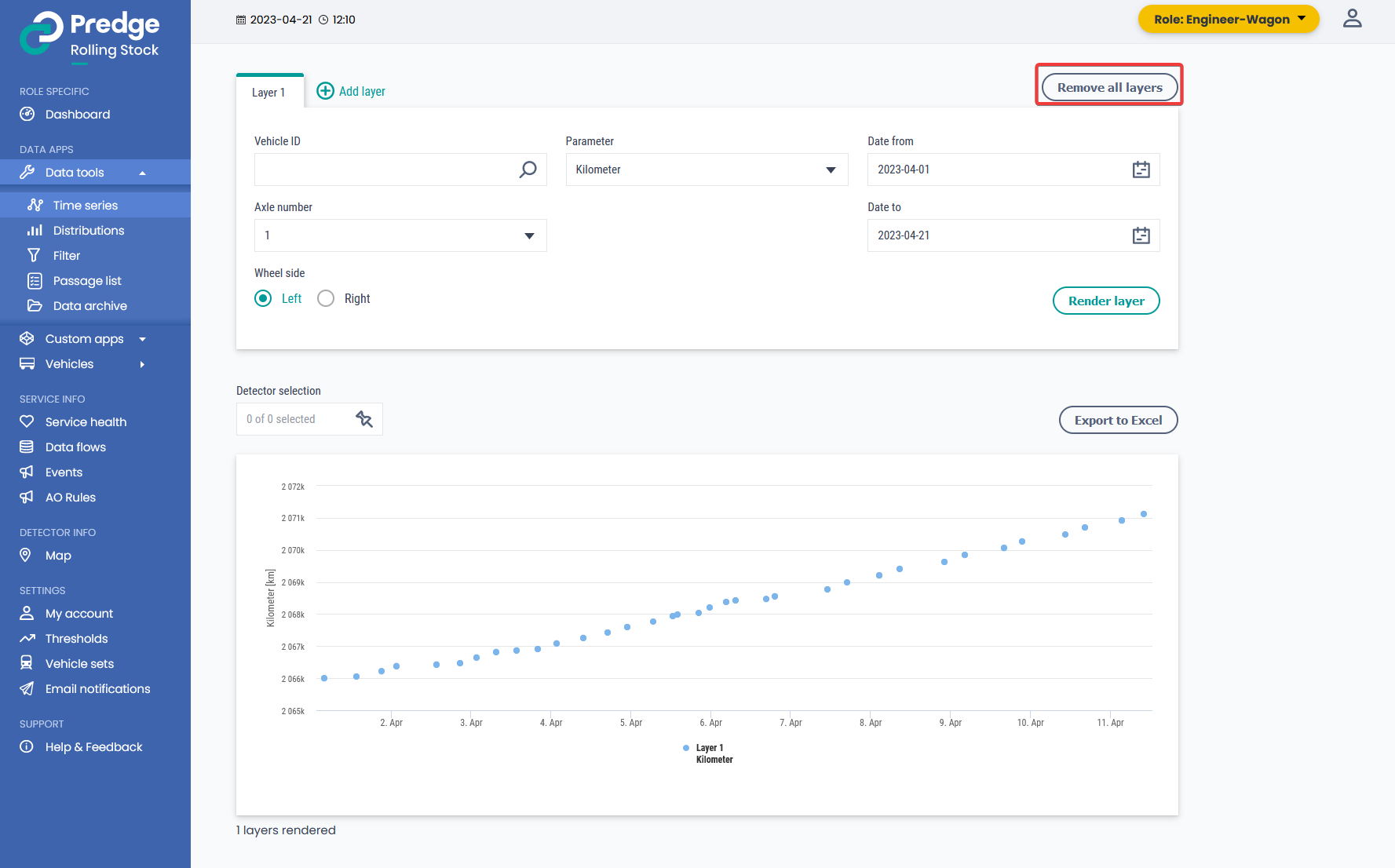

Clear time-series view
To clear the time series view click on the REMOVE ALL LAYERS button in the upper right corner.

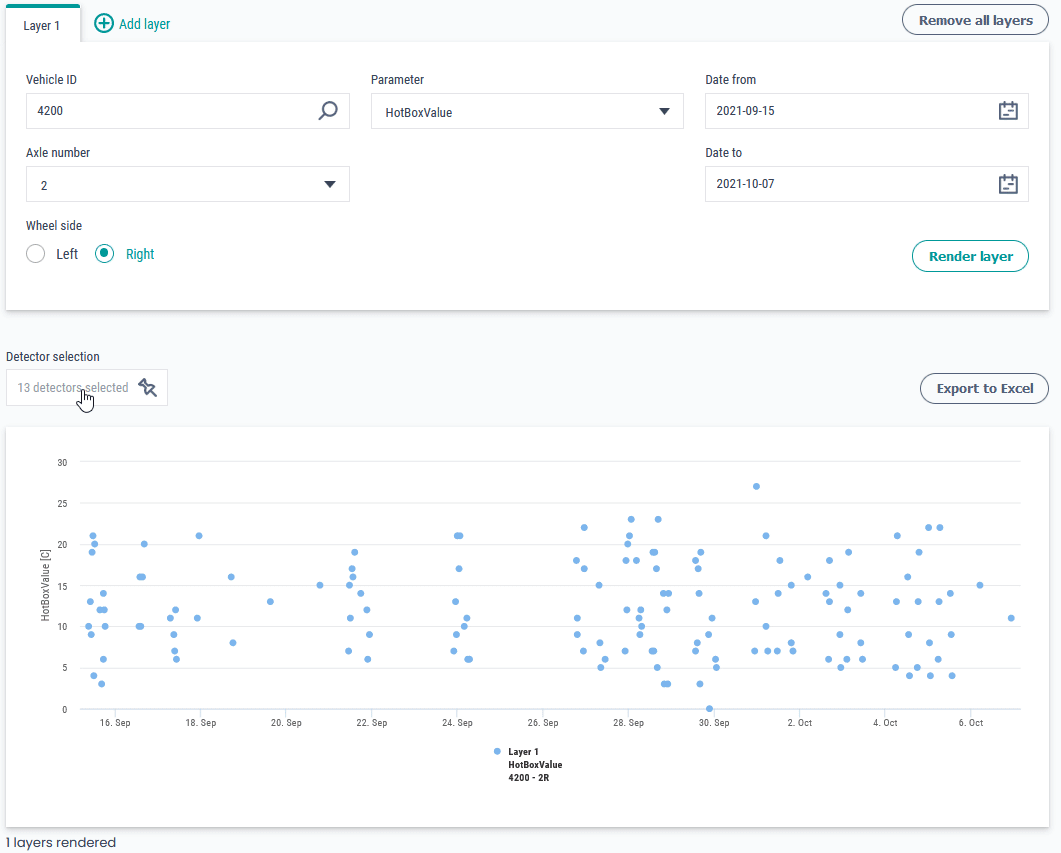

Select detectors to be included in the results
It is possible to select what detectors should be included in the presentation of the results. This can help you get a more detailed view or view of a particular detector.
To do this click on DETECTOR SELECTION above the chart on the left and select the detectors to be included.

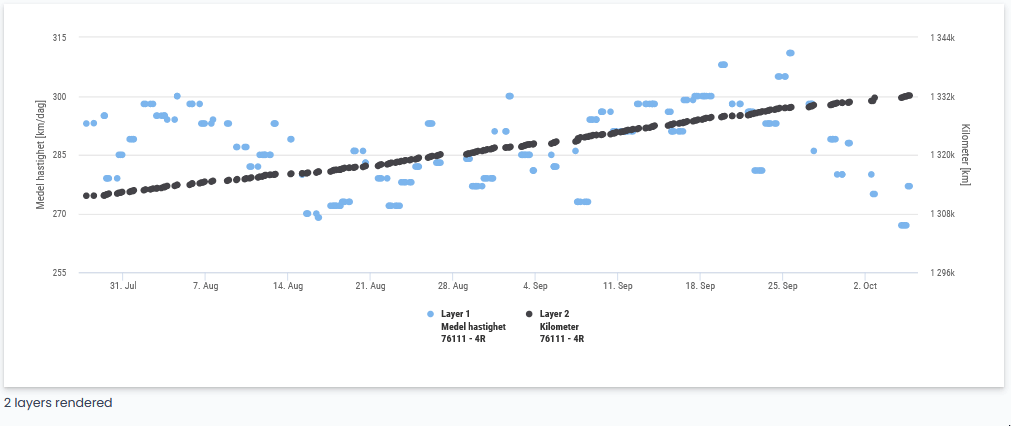

Modify time-series results
When multiple layers are rendered, you can select the results for a more detailed view by clicking on the respective layer.
You can also zoom in on the visualization for a more detailed view. To do this click & drag with the mouse over the desired period.
